Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| start port | Guangzhou |
|---|---|
| production capacity | 10000 units/month |
| place of origin | Guangdong, China |
| payment | T/T, Alibaba Trade Assurance, paypal |
| moq | 1 pcs |
| model | LY-FB |
| delivery time | Within 7 working days |
| certification | ISO 9001 |
| brand | OEM/Lvyuan |
| material | stainless steel |
|---|---|
| availability | oem |

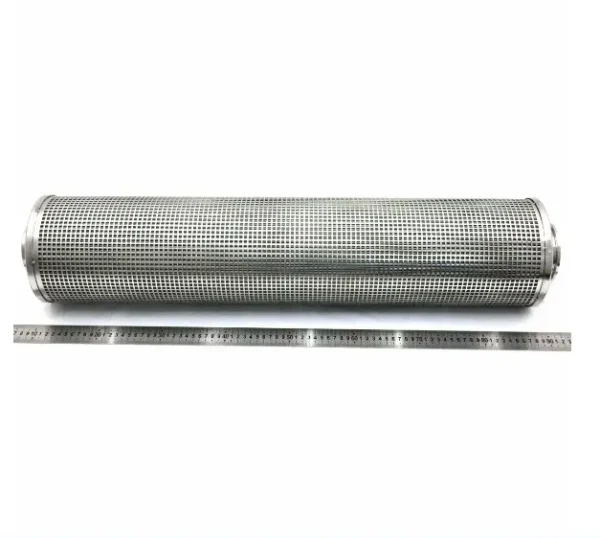

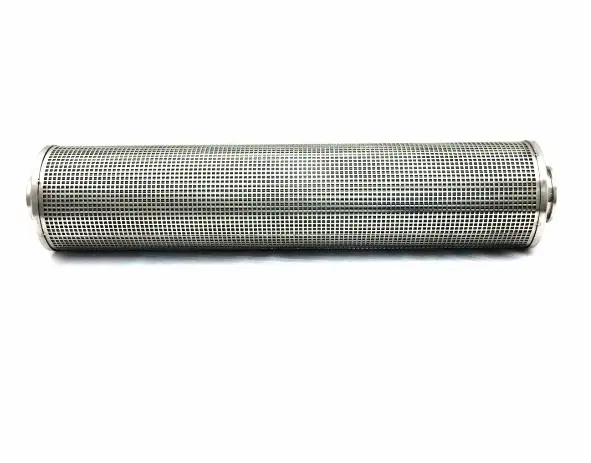

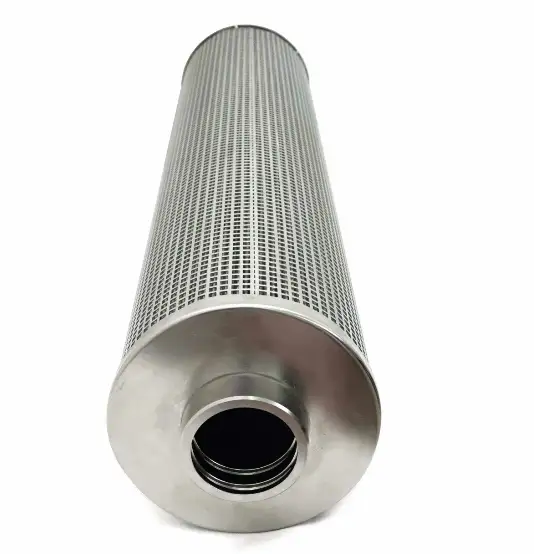

Filter element stainless steel filter tube
stainless steel filter tube is composed of standard five layer sintered mesh, which is laminated and sintered in vacuum. This kind of filter cartridge has the following advantages such as high strength, high corrosiveness, excellent permeability, easy to wash and backwash, accurate filter efficiency etc.
Standrad Sintered Mesh consists five layers:the protctive layer,the filter layer, the dispersion layer, two reinforcing meshes.Owing to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing andregeneration. Futhermore,this mesh is easy to be formed,machined and welded. It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Product Description
nomal filter rating(um):2,5,10,20,40
control layer(mesh):325*2400 200*1400 165*1400 165*800 50*250
permeability(%):38
bubble point pressure:280-640(2um) 250-600(5um) 220-550(10um) 180-450(20um) 150-400(40um)
thickness(mm):1.7
weight(kg):8.4
Main Connection Type
*Standard interface, such as 222, 220, 226
*Fast interface
*Flange connection
*Tie rod connection
*Threaded connection
*Customized connection
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
