Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 500 units/Month |
| Place of Origin: | Guanddong, China |
| Payment: | T/T, Western Union, Alibaba Trade Assurance, paypal |
| MOQ: | 10pcs |
| Model: | LY-PL-N66 |
| Delivery Time: | Within 7 days after full payment. |
| Certification: | SGS |
| Brand: | OEM/Lvyuan |
Product Feature

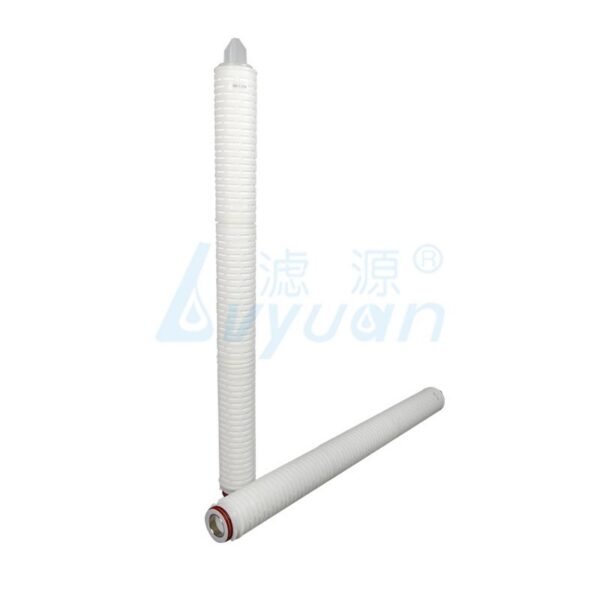

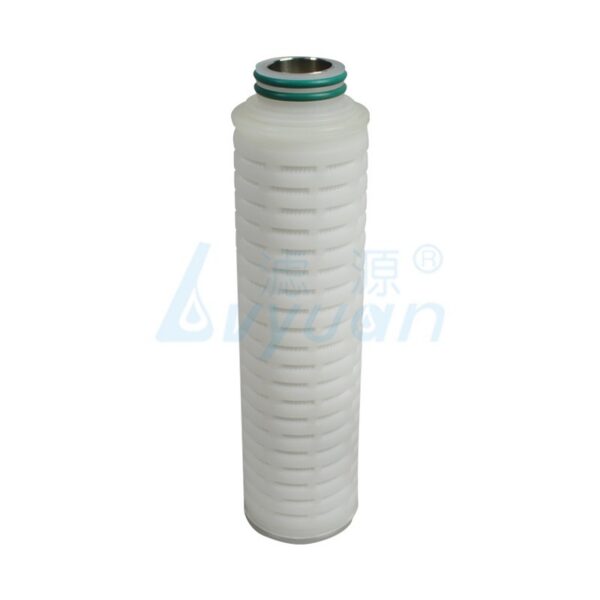

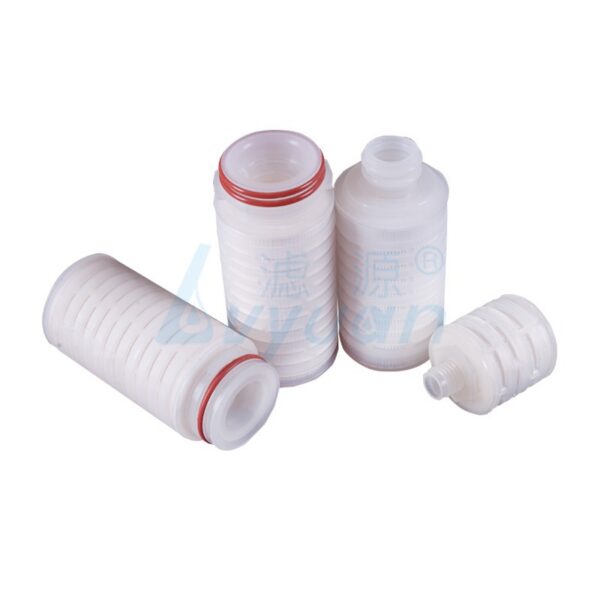

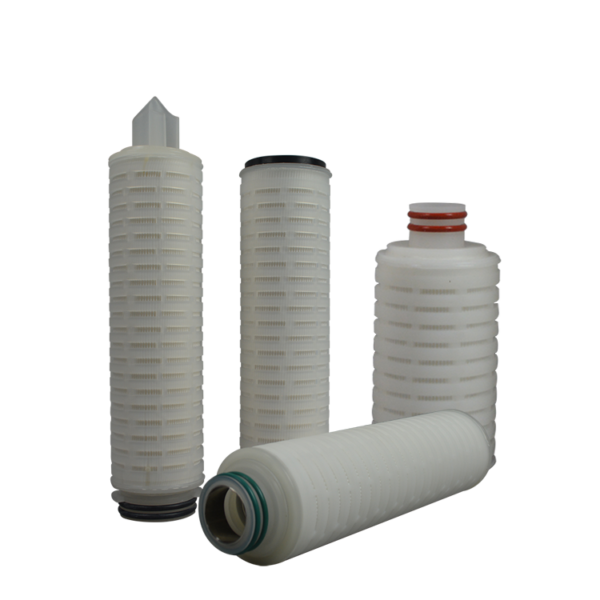

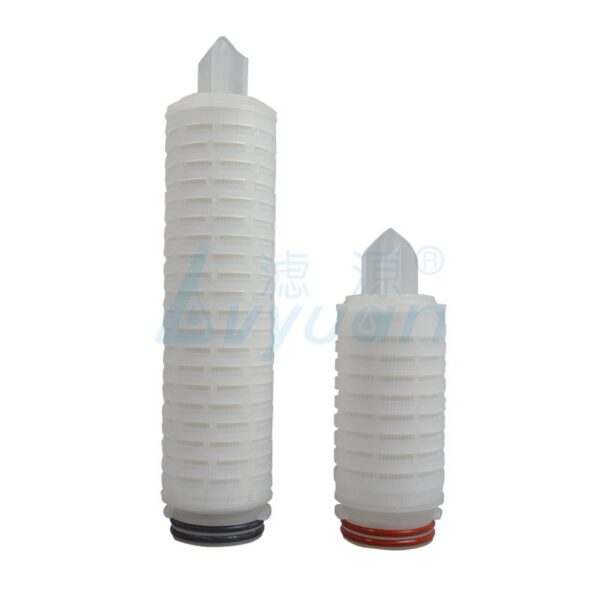

| Product Name | 30 inch Nylon N66 membrane pleated filter element with 226 adaptor (LY-PL-N66) |
| Filter media | Nylon(N66 ) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7” (69mm) |
| Length | 5”, 9.75”, 10”, 20”, 30”, 40”, Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤ 49℃ |
| Micron rating(μm) | 0.2, 0.45, 0.65, 1 |
RO water pre treatment in municipal tap water
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
