Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | Guangzhou |
| production capacity | 10000 units/Month |
| place of origin | Guangdong, China |
| payment | T/T, Alibaba Trade Assurance |
| moq | 1 pcs |
| delivery time | Within 7 working days |
| certification | ISO 9001 |
| brand | OEM/Lvyuan |
| supply ability | 1000000 pc/month |
|---|---|
| material | stainless steel |
| availability | oem |

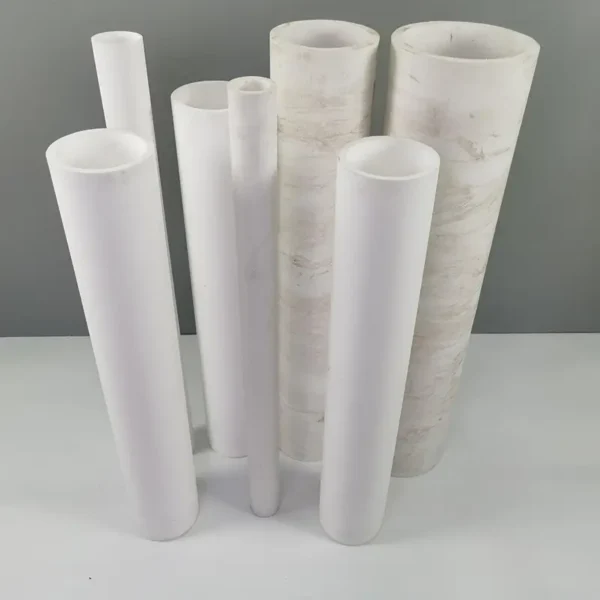

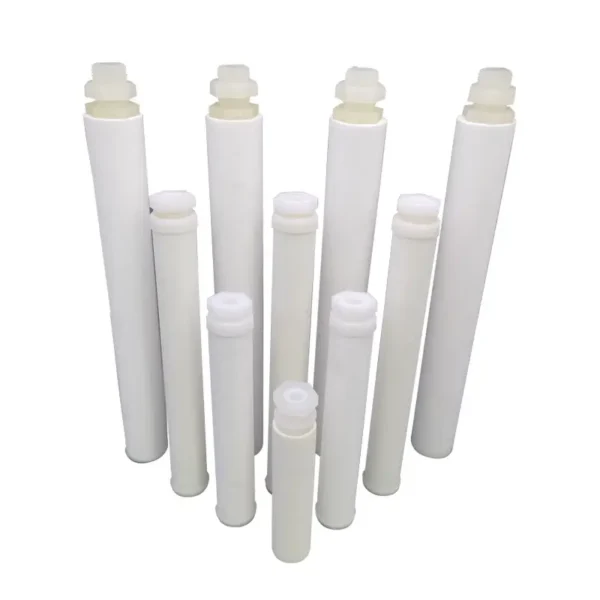

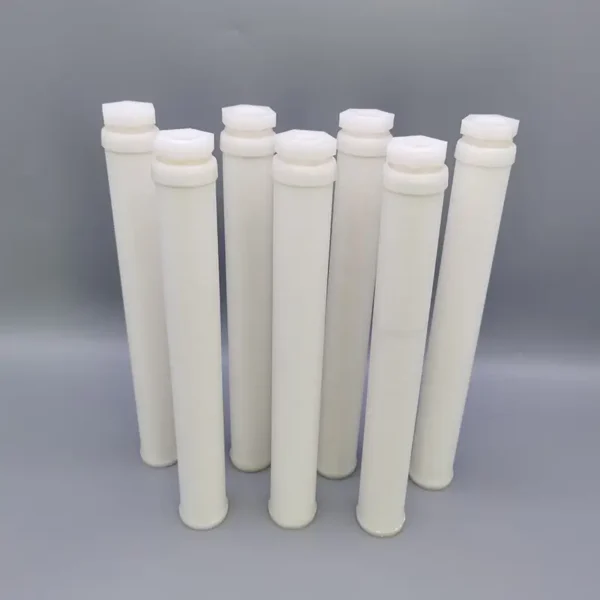

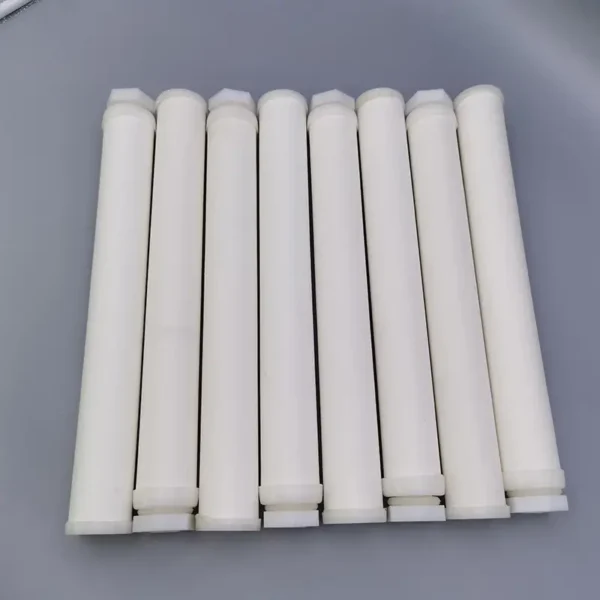

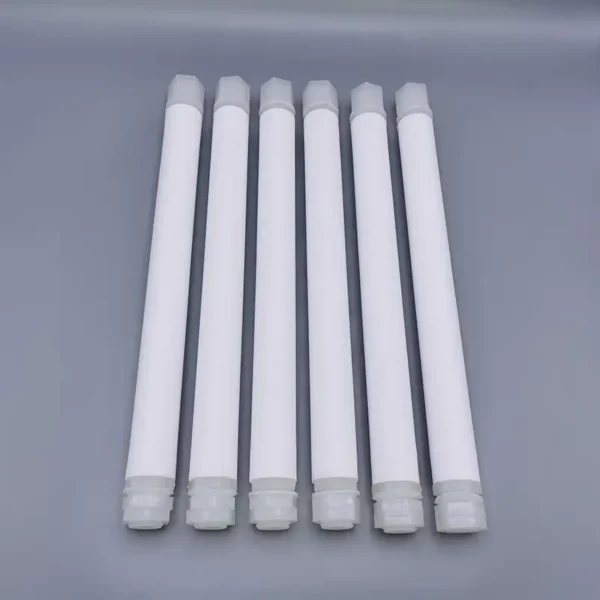

1 3 5 10 25 50 75 100 Micron Micro porous PE Sintered Filter Element
Product description
The sintered filter tube is a microporous filter element formed by sintering powder materials. The material of the filter tube is ceramic, glass sand, plastic (polyethylene or polyvinyl chloride) and so on.
Product category
(1) Plastic filter tubes are suitable for filtration of various liquids, industrial water and drinking water. There are more than 10 specifications of this kind of microporous tube, its outer diameter is 24-150mm, the corresponding inner diameter is 8-120mm, and the length is mostly 1000mm, and the effective filtering area of each filter tube is 0.039-0.3m2.
(2) Ceramic filter tube Sintered ceramic filter tube uses a ceramic sintered filter tube as the filter element, which can be composed of a single filter tube or multiple filter tubes. The water treatment capacity of a single filter tube is 600-1500L/h, and it is generally suitable for working pressure below 0.3MPa .
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
